Light Sources

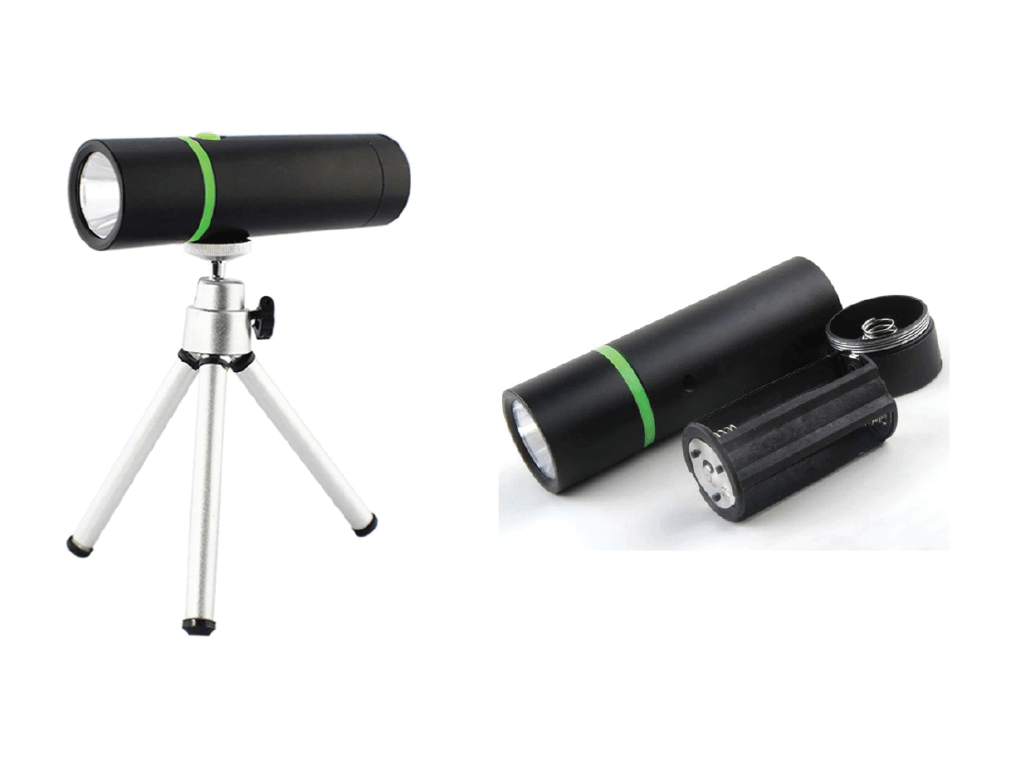

Economy Crime Scene Lamp

A LED light source for illuminating shoe prints, fibers, blood spatter & particulate evidence. It is LED based light source that provides an alternative beam profile for locating evidence at the crime scene. Cylindrical lens to give a wide “linear” light beam that is ideal for detecting surface debris and shoe prints in dust. Accessories include red, amber & clear UV absorbing goggles to enhance contrast. A telescopic pole / tripod which adds convenience for prolonged floor and static searches.


LED Light Output Use these spectacles and contrast filtersTypical Inspection Sample
VIOLET UV - absorbing Clear Spectacles Natural and UV fluorescent dyes and powders, bite marks, bruising, pattern wounds, rare document / stamp / artwork examination
BLUE Amber or Red Biological stains on white background, basic yellow, bone blood and other trace bodiliy fluids
WHITE N/A Foot print, Dust print, General field illumination and inspection
TECHNOMAXX FLS300
Color/Wavelength
LED Light Output Approx WavelengthBandwidthUse these spectacles and filtersTypical Inspection Sample
UV 365nm 360-370 UV-absorbing Clear Spectacles Natural and UV fluorescent dyes and powders, bite marks, bruising, pattern wounds, rare document / stamp / artwork examination
BLUE 450nm 440-460 Amber or Red Biological stains on white background, basic yellow, bone blood and other trace bodiliy fluids
WHITE 6500°K 4500°K- 10000°K N/A General field illumination and inspection
TECHNOMAXX FLS500
Contents for FLS 500
Maxx UV LED Torch Amber GoogleHigh Power Li-ion Batteries
Maxx Blue LED Torch Transparent GoogleAC/Main Charger
Maxx Violet LED Torch Red GoogleDC/Car Charger
Maxx Green LED Torch Orange GoogleTripod
Maxx White LED Torch Polypropylene Case

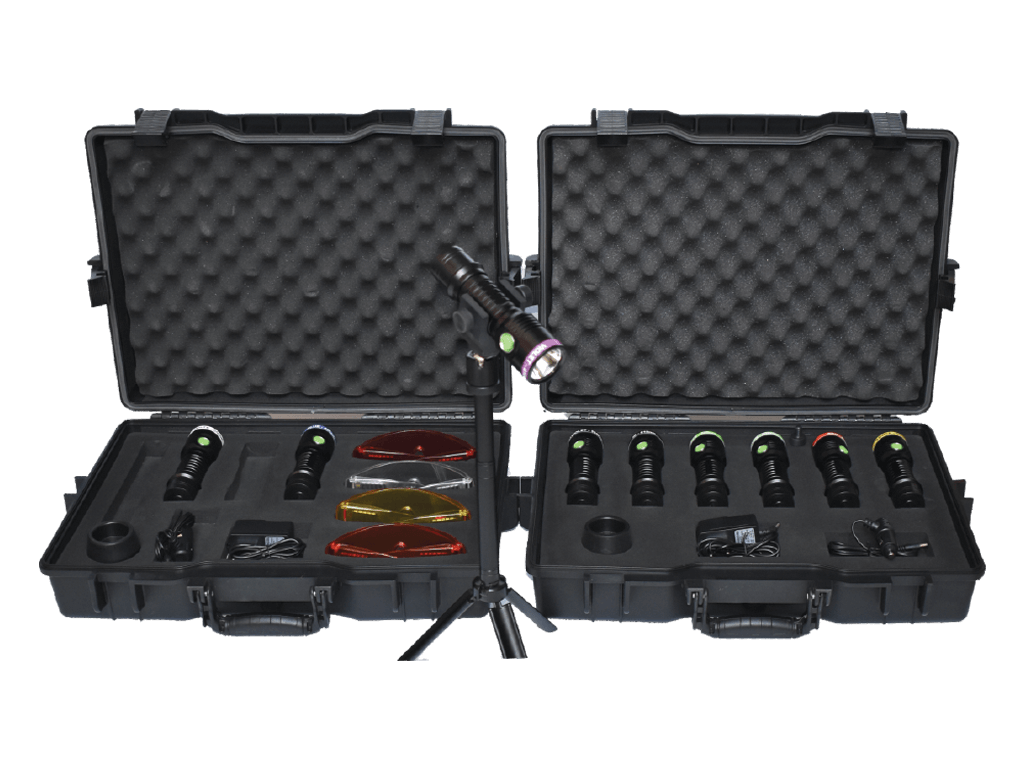

TECHNOMAXX FLS900
LED Lamp Head Chart
LED Light Output WAVELENGTH OR COLOR TEMPERATUREBandwidthSUGGESTED GOGGLESAPPLICATIONS
UV 365nm 360-370 UV-absorbing Spectacles Natural and UV fluorescent dyes and powders, bite marks, bruising, pattern wounds, rare document / stamp / artwork examination
BLUE 450nm 440-460 Yellow or Orange Biological stains on white background, basic yellow, bone blood and other trace bodiliy fluids
Violet 410nm 400-410 Yellow Untreated blood absorption (detection of blood against dark background)
Cyan 500nm 490-510 Orange Latent fingerprints
Green 525nm 520-550 Orange Enhance Ninhydrin-treated samples
Amber 590nm 585-597 Red Sample contrast
Red 630nm 620-645 N/A Hair, questionable documents
IR 810nm 800-820 N/A Blood Spatter, Fibers, Gunshot Residues, Inks
White 6500K 4,500-10,000K N/A General field illumination and inspection
